Learning System Design #3: Rate Limiting

Third part of the “Learning System Design” series! This time — rate limiting. Something every backend developer deals with sooner or later, and something that comes up in almost every system design interview.

The concept is dead simple — control how many requests a client can make in a given time window. But the devil is in the details. There are multiple algorithms, each with different trade-offs, and picking the wrong one can either leave your system unprotected or annoy your users with unnecessary rejections.

Why Rate Limiting?

Your API can handle, say, 1000 requests per second. What happens when someone sends 10,000? Everything slows down, legitimate users suffer, and your on-call engineer gets paged at 3am.

Rate limiting protects you from DoS attacks, brute-force attempts, buggy clients stuck in infinite loops, and one heavy user consuming all your resources. It’s not optional — it’s infrastructure.

Every rate limiter answers three questions: who is making the request (IP, API key, user ID), how many requests are allowed, and in what time period.

The Algorithms

There are five main approaches. Let’s go through each.

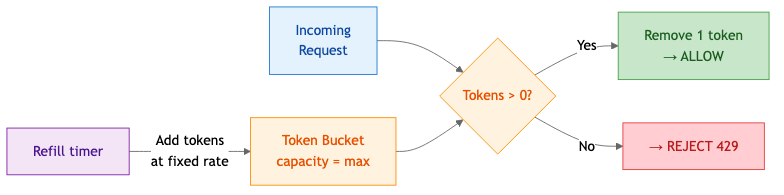

Token Bucket

Think of it as an arcade — you get tokens at a steady rate, you can save them up to a maximum, and each request costs one token. No tokens left? Wait.

Two parameters control everything: bucket size (max burst allowed) and refill rate (sustained throughput). A bucket of 100 with a refill of 10/sec means you can burst 100 requests instantly, then sustain 10/sec after that.

This is what Twitter (X) uses — “300 requests per 15 minutes” is basically a token bucket with 300 capacity and 0.33 tokens/sec refill.

Pros: allows natural traffic bursts, simple, memory-efficient (just 2 values to store). Cons: large bucket sizes can overwhelm your backend during a burst.

Leaky Bucket

Requests go into a queue and get processed at a constant rate — like water leaking from a bucket through a small hole. Queue full? Request rejected.

The key difference from token bucket: token bucket controls when you can request, leaky bucket controls when requests are processed. Token bucket allows bursts, leaky bucket smooths everything out.

Pros: perfectly smooth output rate, great when calling rate-limited external APIs. Cons: adds latency (requests wait in queue), new requests stuck behind old ones.

Fixed Window Counter

The simplest approach — divide time into fixed windows (e.g., 1-minute chunks), count requests in each window, reset when the window ends. One counter, done.

But there’s a nasty edge case. If someone sends 100 requests at 12:00:59 and another 100 at 12:01:01, both windows think they’re under the limit. Result: 200 requests in 2 seconds while your limit is 100/minute. Effectively double the intended rate at window boundaries.

Pros: dead simple, minimal memory. Cons: 2x burst at boundaries. Not suitable when strict limits matter.

Sliding Window Log

Keep a timestamp of every request. For each new request, remove expired timestamps, count the rest. If under the limit — allow.

This is the most accurate approach. No boundary issues whatsoever. But you’re storing every single timestamp, and cleanup is O(n). For high-volume APIs this just doesn’t scale.

Pros: perfect accuracy. Cons: memory-hungry, slow cleanup. Only practical for low-volume, high-accuracy scenarios like fraud detection.

Sliding Window Counter

This is the sweet spot. Combine two fixed window counters — current and previous — and use a weighted average based on how far into the current window you are.

If you’re 20 seconds into a 60-second window, the previous window gets 67% weight ((60-20)/60). So if the previous window had 84 requests and the current has 36, your estimate is: 84 × 0.67 + 36 = 92. Under 100? Allow.

Pros: memory-efficient (just 2 counters), smooths boundary issues, good enough for production. Cons: it’s an approximation, not 100% precise. But for most use cases — more than good enough.

Which One to Pick?

Here’s a quick decision guide:

If you’re unsure — Sliding Window Counter is the safe default. It’s what most production APIs (GitHub, Stripe) use behind the scenes.

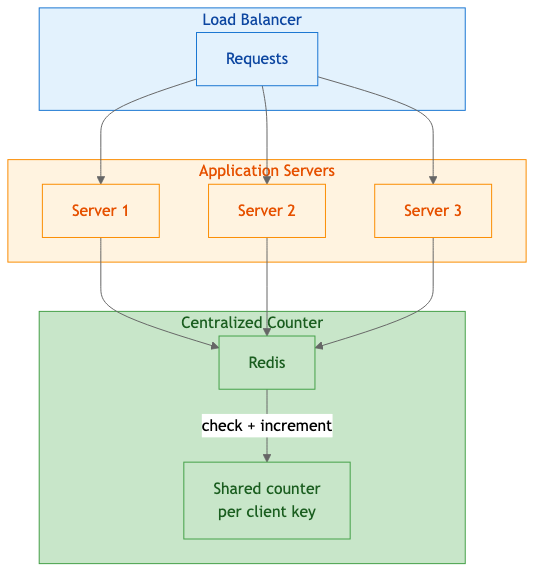

Distributed Rate Limiting

Everything above works fine on a single server. Add a load balancer with 3 servers behind it, and your 100 req/min limit becomes 300 — each server counts independently.

The standard fix: use Redis as a centralized counter. All servers check the same shared state. It’s accurate but now Redis is a critical dependency and every request has network latency.

A smarter approach is token pre-fetching — each server grabs a batch of tokens from Redis in advance (say, 100 at a time) and serves requests from the local pool. Extremely fast, no per-request network call. The trade-off: if a server crashes with unused tokens, those are wasted.

And the big question — what if Redis goes down? Most production systems fail open (allow all requests). It’s better to temporarily over-serve than to have a complete outage because your rate limiter died. Log it, alert on-call, fix it.

Implementation Tips

A few practical things that matter in real systems:

Always return rate limit headers. X-RateLimit-Limit, X-RateLimit-Remaining, X-RateLimit-Reset. When you reject with 429, include Retry-After. Your users will thank you.

Use per-endpoint limits. A GET /users is cheap, a POST /export is expensive. Same limit for both makes no sense.

Tier your limits. Anonymous gets 10/min, free users 100/min, pro users 1000/min. Simple, effective, and a natural upsell path.

Combine identifiers. Rate limiting by API key alone? Users create multiple keys. By IP alone? Shared offices get punished. Use a combination — API key + IP + user ID.

Summary

Rate limiting is one of those things that seems trivial until you have to implement it properly. The algorithm choice matters — sliding window counter is the go-to default, token bucket when you need controlled bursts, leaky bucket when you need smooth output.

For distributed systems, centralized Redis counters or token pre-fetching solve the multi-server problem. And always fail open — your rate limiter should protect your system, not become another point of failure.

More detailed notes with code examples, ASCII diagrams, and algorithm comparisons:

https://github.com/sadensmol/learning_system-design/blob/main/rate-limiting-guide.md

Thanks for reading! More system design topics coming in the next parts of the series.

PS: what’s your go-to rate limiting setup? I’d love to hear what algorithms and tools you use in production!
